Supermicro · Gold configuration

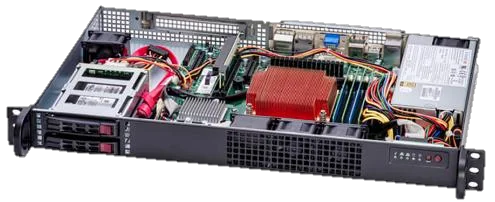

SYS-111AD-HN2-01-G2
A shallow 1U system for retail point-of-sale, self-checkout, and connected equipment.
- Included processor
- 1 × Intel Core i7-12700E
- Installed memory
- 64GB DDR5-5600

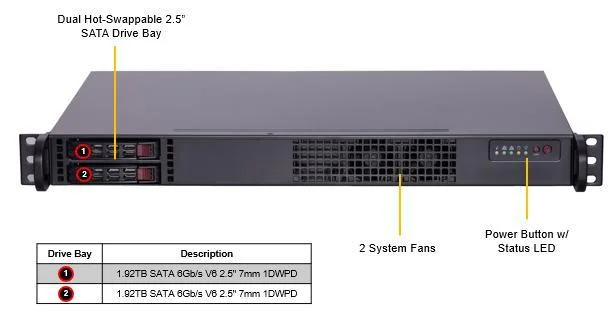

- Storage configuration
- 2 × 1.92TB 2.5-inch SATA SSD
Authorized Supermicro distributor
Included in this Gold configuration
- Form factor / system type
- 1U rackmount
- Included processor
- 1 × Intel Core i7-12700E
- Installed memory
- 64GB DDR5-5600
- Storage configuration
- 2 × 1.92TB 2.5-inch SATA SSD

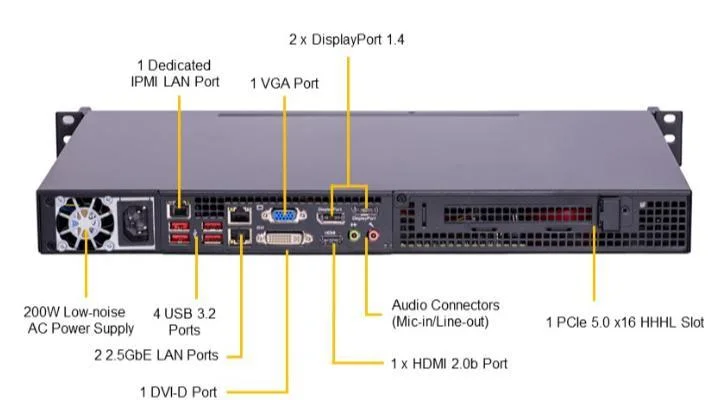

- Ethernet specification
- Dual 2.5GbE RJ45
- Included power equipment
- 1 × 200W Gold power supply
Memory ratings describe the modules; operating speed depends on the CPU and DIMM configuration.
Platform capabilities and installation requirements
- Supported memory capacity
- Up to 128GB DDR5 UDIMM at 4400MT/s (2DPC).
- Enclosure dimensions (W × H × D)
- 437 × 43 × 287mm
- Cooling
- Platform supports up to four 40 × 28mm PWM fans; installed fan population must be confirmed.
- Operating temperature
- 0 to 40 °C
- Management networking
- Dedicated 1GbE BMC port; separate from the two data ports.
