Supermicro · Gold configuration
ARS-E103-JONX-H2-01-G2
A fanless Jetson Orin NX system for vision, kiosks, and local AI processing.
- Included processor
- 1 × 8-core Arm Cortex-A78AE (Jetson Orin NX)
- Installed GPU
- Integrated Jetson Orin NX GPU
- Installed memory
- 16GB onboard ECC LPDDR5X
Authorized Supermicro distributor
Included in this Gold configuration
- Form factor / system type
- Compact fanless system
- Included processor
- 1 × 8-core Arm Cortex-A78AE (Jetson Orin NX)
- Installed GPU
- Integrated Jetson Orin NX GPU
- Installed memory
- 16GB onboard ECC LPDDR5X
- Storage configuration
- 1 × 256GB M.2 NVMe SSD
- Ethernet specification
- 4 × 1GbE RJ45; 1 × 10GbE RJ45
Platform capabilities and installation requirements
- Enclosure dimensions (W × H × D)
- 185 × 80 × 140mm
- Cooling
- Fanless
- Operating temperature
- −25°C to 60°C with 0.7m/s airflow
- Expansion
- M.2 E-key 2230 and B-key 3052/3042 slots; populated cards must be confirmed.
- PoE
- Optional; not established as included in this Gold configuration.
- Industrial interfaces

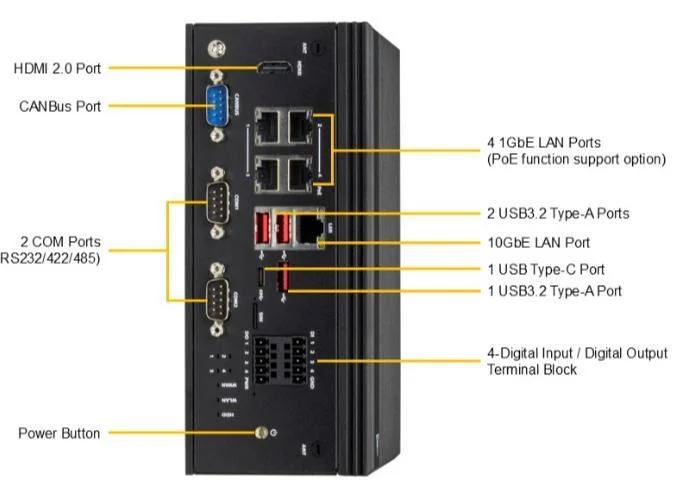

- 2 COM RS232/RS422/RS485 ports, one CANBus port and 4 DI/4 DO.
Documents
PDFProduct datasheetSupermicro PDF
