AAEON · FWS-2291 series

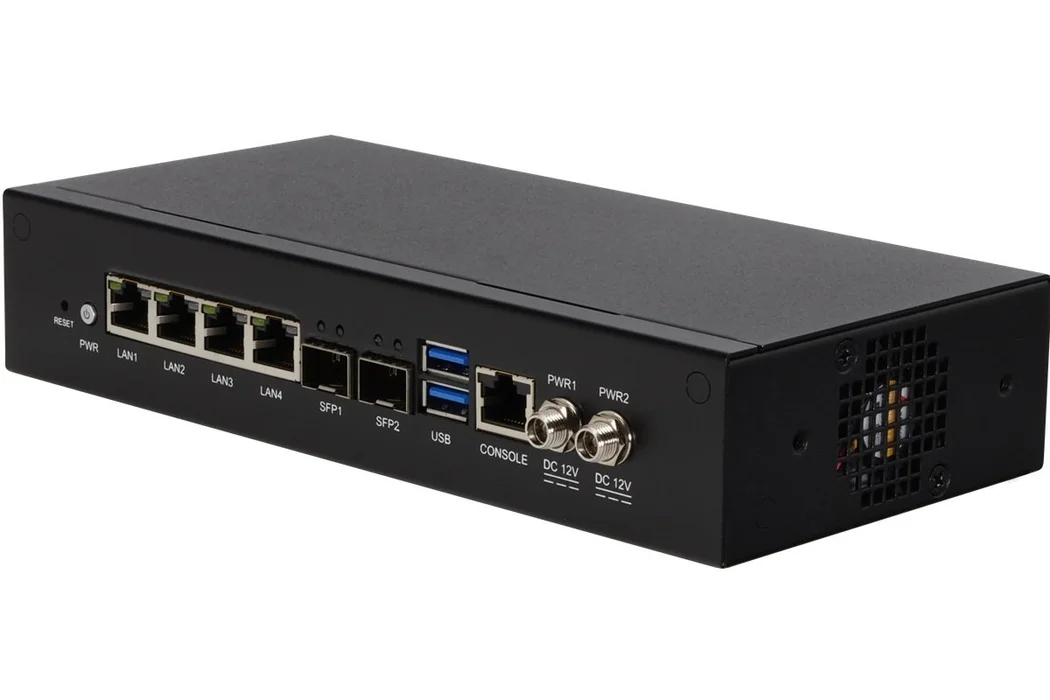

FWS-2291-E6-A10-00
A desktop network appliance combining four 2.5GbE copper ports, two SFP ports, LAN bypass, and expansion for wireless connectivity.
- Processor
- Intel Processor N97
Authorized AAEON distributor
Specifications
- Processor / supported family
- Intel Processor N97
- Maximum memory (GB)
- 16
- Form factor / system type
- Desktop network appliance
- Data LAN ports
- 6
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 1
- Ethernet specification
- 4 x 2.5GbE RJ-45 + 2 x 1GbE SFP; two bypass pairs
- USB 3.x ports, excluding Type-C
- 2
- Serial interfaces
- RJ-45 console
- M.2 Key B
- 3052
- M.2 Key E
- 2230
- M.2 Key M
- 2242
- Width (mm)
- 220
- Length (mm)
- 105
- Height (mm)
- 44
- TPM
- Optional 2.0
- Fanless
- No
- Power input details
- Dual lockable DC inputs
- Processor family
- Intel Processor N
- Configuration notes
- The listed N97 configuration supports up to 16GB RAM. The family maximum of 32GB applies to other CPU options. HDMI and TPM are optional.
- Storage configuration
- 32GB onboard eMMC; one 2.5-inch bay; M.2 2242 M-Key
Ask us for current product status and availability.
